Fiber-to-the-Antenna by viaPhoton

Products

Fiber-to-the-Antenna

Your complete connectivity solution provider.

As the need for fiber and power increases, we can provide viaPhoton Fiber-to-the-Antenna (FTTA) end-to-end solutions at scale.

Fiber-to-the-Antenna (FTTA) Broadband Solutions

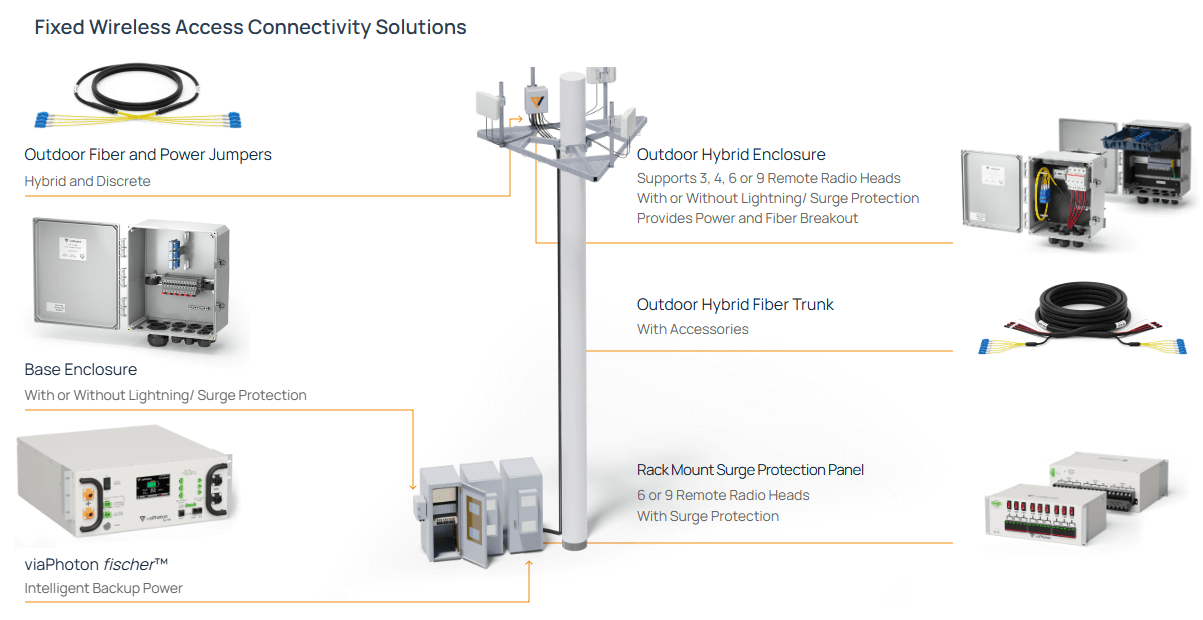

FWA Solution - viaPhoton Fiber-to-the-Antenna (FTTA)

FTTA Solutions at Scale

Fiber & Power Jumper (Discrete or Hybrid)

viaphoton

Outdoor Fiber Jumper

Model Number OFJ-XX-XXX-XXX-X-X

Data Sheet: viaPhoton Outdoor Fiber Jumper



Outdoor Hybrid Fiber Jumper

Model Number OHFJ-XX-XXX-XXX-X-X

Data Sheet: viaPhoton Outdoor Fiber Jumper



Outdoor Hybrid Enclosure with Surge Protection

viaPhoton OHE-xx-xSPD-Gx

Tower Mount Outdoor Hybrid Enclosure

viaPhoton is constantly innovating to anticipate and meet all of your connectivity needs. The patented Outdoor Hybrid Enclosure (OHE) with surge protection is no exception. The engineered fliptray mechanism offers dedicated fiber access, optical path testing becomes easier, and maintenance becomes faster. The spring-loaded clip ensures smooth fiber travel and saves time when routing cable. The universal brackets allow the enclosure to be mounted to any horizontal or vertical structure.

• Easy-access design for fast, on-site fiber and power installation
• NEMA 4X rating for harsh environment protection
• IEC Class 1 Surge Protection Device (SPD) for DC-powered RRH applications
• Uptime preserved in rare instance of SPD failure; RRH units remain powered
• Gland sizes for range of cable diameters (5 mm - 44 mm)

MODEL NUMBER

OHE-xx-xSPD-Gx

OHE-xx-xSPD-M-Gx

DATA SHEET: viaPhoton Outdoor Hybrid Enclosure with Surge Protection

Fiber & Power Trunks (Discrete or Hybrid)

viaphoton outdoor fiber trunk

Outdoor Fiber Trunk

DATA SHEET: viaPhoton Outdoor Fiber Trunk



viaPhoton outdoor hybrid fiber trunk

Outdoor Hybrid Fiber Trunk

Model Number OHFT-XX-XXX-XXX-X-X

DATA SHEET: viaPhoton Outdoor Hybrid Fiber Trunk

Outdoor Demarcation Enclosure

viaPhoton Fiber, Power Distribution, and Cable Management Enclosure

Fiber, Power Distribution, and Cable Management Enclosure

viaPhoton’s innovative Fiber, Power Distribution, and Cable Management Enclosure (ODE) provides an ease of installation for small cell and macro sites in a compact footprint. The ODE offers high levels reliability to radio equipment while protecting the Fiber Network Interface Device (NID) and organizing cable.

• 6 LC Duplex SM adapters for Fiber NID demarcation
• 10 Amp 48 VDC breaker for Fiber NID power
• 4 conduit holes on top and bottom, with removable seal cap
• Cable bend radius protection
• Wall mount
• 12 position ground bus bar
• Excess cable management

PART NUMBER ODE-12LC2-CB10-20-G1

DATA SHEET: viaPhoton Fiber, Power Distribution, and Cable Management Enclosure

viaPhoton 5G Accessories

SnapStak® Plus Cable Hangers

viaPhoton SnapStak® Plus Cable Hangers

SnapStak® Plus Cable Hangers

PART NUMBER
VP-HN-SSP-L
VP-HN-SSP-XL

DATA SHEET: viaPhoton SnapStak® Plus Cable Hangers

SnapStak® Cable Hangers

viaPhoton SnapStak® Cable Hangers

SnapStak® Cable Hangers

PART NUMBER
VP-HN-SHS-78
VP-HN-SHS-114
VP-HN-SHS-158

DATA SHEET: viaPhoton SnapStak® Cable Hangers

Universal Barrel Cushion*

Universal Barrel Cushion*

*To be used in conjunction with SnapStak® Cable Hangers

PART NUMBER
VP-BCU-78
VP-BCU-114
VP-BCU-158

DATA SHEET: viaPhoton Universal Barrel Cushion

Angle Adapter

viaPhoton Angle Adapter

Angle Adapter



PART NUMBER
VP-AA-U3G

DATA SHEET: viaPhoton Angle Adapter

Snap-In Standoff with Round Member Adapter Kit

viaPhoton Snap-In Standoff with Round Member Adapter Kit

Snap-In Standoff with Round Member Adapter Kit

PART NUMBER
VP-SSA-300
VP-SSA-500

DATA SHEET: viaPhoton Snap-In Standoff with Round Member Adapter Kit

Lace-Up Hoisting Grips

viaPhoton Lace-Up Hoisting Grips

Lace-Up Hoisting Grips

PART NUMBER
VP-HG-LU38
VP-HG-LU12
VP-HG-LU58
VP-HG-LU78
VP-HG-LU114
VP-HG-LU158

DATA SHEET: viaPhoton Lace-Up Hoisting Grips

Universal Grounding Kit

viaPhoton Universal Grounding Kit

Universal Grounding Kit

PART NUMBER
VP-GK-5UT

DATA SHEET: viaPhoton Universal Grounding Kit
